EXPERIENCE THE

GALAXY BD12

A versatile machine that can handle a wide range
of sanding projects with ease. Its combination of a
12" belt and drum sander in one machine makes it
a cost-effective solution for both challenging and
delicate projects.

BUY NOW

SAME MACHINE, BRAND NEW LOOK

One of the benefits of the BD12 is its equal aggressiveness in both belt and drum
modes. This means that it can handle tough sanding jobs just as well as more
delicate ones, giving you greater flexibility in your work. Additionally, the optional
9hp-3 phase motor makes it well-suited for large surfaces and rider attachments,
further expanding its capabilities.

DOWNLOAD BROCHURE

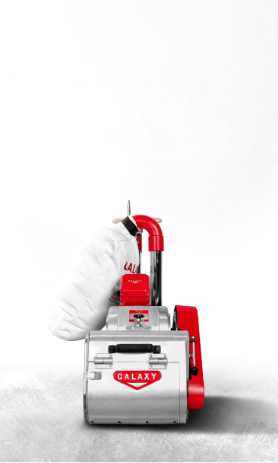

Front View

The standard motor is a single-phase 7.5 HP, 240 Volt , 60 Hz motor, with a speed of 1725 RPM.

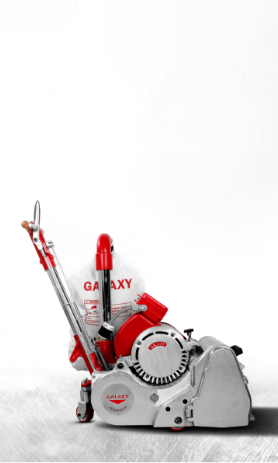

Right View

One of the unique features of the Galaxy motor is its ease of use and maintenance. By loosening two release pins, the motor can be easily detached, making disassembly and one-man transportation fast and easy.

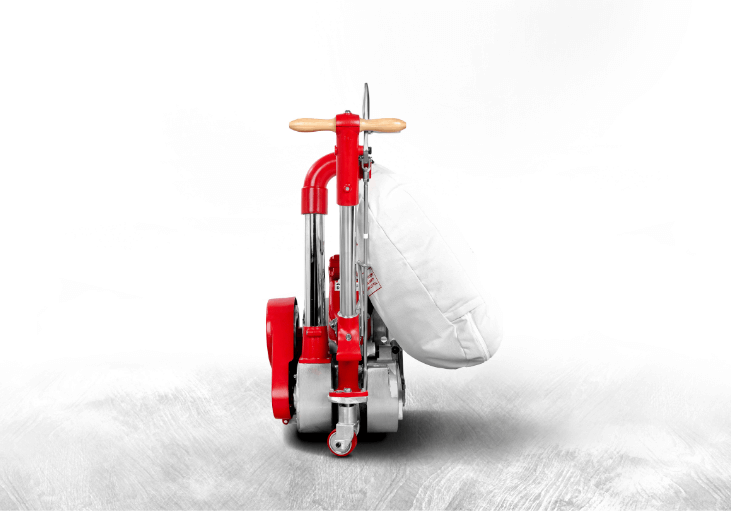

Back View

Overall , the technical specifications provided suggest that the Galaxy motor is a powerful and reliable component of the floor sander, delivering optimal performance for a variety of tasks.

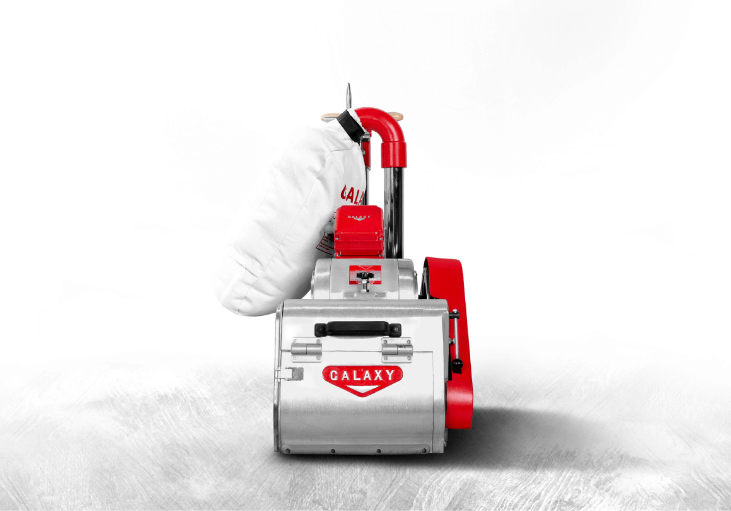

Front View

The standard motor is a single-phase 7.5 HP, 240 Volt , 60 Hz motor, with a speed of 1725 RPM.

Overall, if you're in the market for a versatile and cost-effective
sanding machine, the BD12 could be worth considering. Its
combination of belt and drum sanding modes, patented
technology, and optional motor make it a versatile and
powerful tool for a variety of sanding projects.

GALAXY SPECIFICATIONS

Motor Data	7.5 HP, 240 Volt, 60Hz, single phase, 1725 RPM (Standard) 5.0 HP, 240 Volt, 50Hz, single phase, 1450 RPM (Optional) 9.0 HP, 208 Volt, 60Hz, three phase, 1725 RPM (Optional) Air cooled, permanently lubricated bearings Capacitors: 1 Running, 1 Starting, and 1 Electronic Staring Circuit
Tension Roller	Self Aligning & externally adjustable tracking while machine is operating. Upper tension roller is easily removed for maintenance
Drum	Electronically balanced 7.4" diameter Speed – 2300 RPM
Chassis & Components	Polished premium quality alloy
Pressure Control	Infinitely adjustable
Dust Control	Vacuum Fan – 7,300 RPM, 450 CFM Dustless swivel elbow – fitted with double "slide seals" Heavy Duty sanding bag; Clean-out side cover
Drum control	Lever Action - feather or grip handle
Drives	Poly groove belt pulley system
Wheels	Tough solvent resistant, urethane
Cable	90 ft 12-3 rubber coated, non-marking
Abrasive Sizes	12" x 50ft roll 11 7/8" x 29 1/2 cloth belt
Weight lbs/kg	248/112
